Basic Description

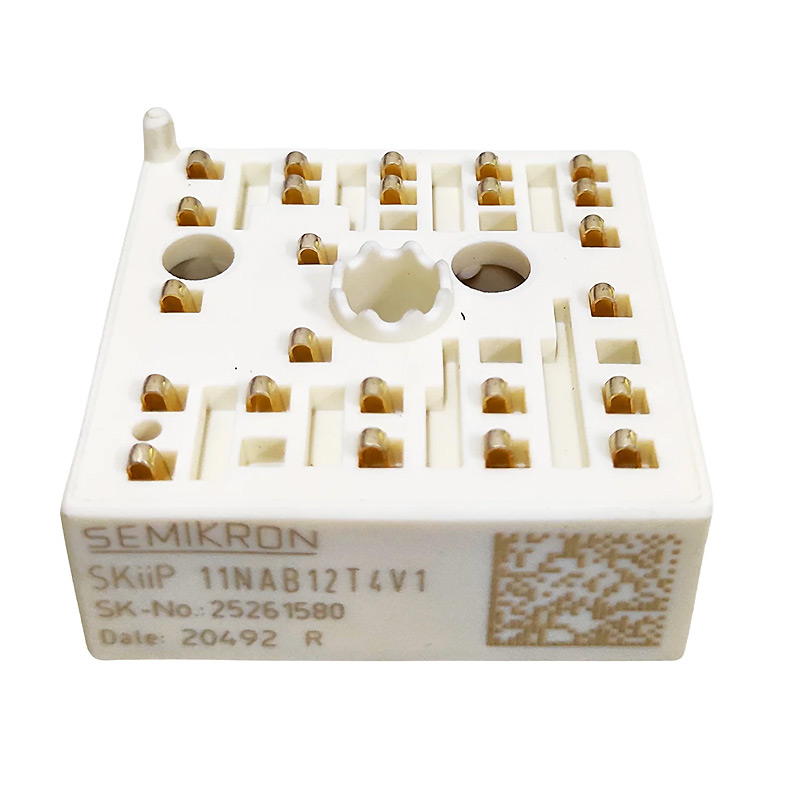

- The SKIIP11NAB12T4V1 is a power semiconductor module combining a 3-phase bridge inverter, input rectifier, and brake chopper in one package.
- It is part of SEMIKRON’s MiniSKiiP family.
- It contains 4 IGBTs (trench technology) and associated freewheeling diodes, plus the supporting circuits.
- It is intended for inverter applications up to about 8 kVA rating, e.g., driving motors up to about 4 kW under typical conditions.
Key Specifications & Ratings
Here are some of the important electrical/thermal parameters. (“typ” = typical, “max” = maximum)
| Parameter | Symbol / Condition | Typical / Max Value | Units |
| Collector-Emitter Voltage (IGBT) | ( V_{CES} ) | up to 1200 V | V |
| Continuous Collector Current (IC) | at Ts = 25 °C / 70 °C | 12 A | A |
| Reverse Collector Current (ICRM) | pulsed | 24 A | A |
| Forward current for inverse / freewheeling diodes | ( I_F ) | 14 A at 25 °C, 11 A at 70 °C | A |
| Reverse Voltage of diodes | ( V_{RRM} ) | 1200 V | V |
| Switching Times / Energy Losses (at Tj = 150 °C) | — | ( t_{on} ), ( t_{off} ), ( E_{on} ), ( E_{off} ) etc. | – |
| Chip-level resistances / saturation voltages | e.g. ( r_{CE} ), ( V_{CEsat} ) | ~150 mΩ (at 25 °C) etc. | – |
| Thermal / Temperature Limits | Junction temperature (Tj) | up to 175 °C | °C |
| Case Temperature limit | ( T_C ) | 125 °C max | °C |
| Isolation | Visol AC, 1 minute | 2500 V | V |
| Physical Weight | — | ~35 g | grams |
Also, there is an internal temperature sensor (R100), which is 100 Ω at 100 °C (± 3 %) for monitoring module temperature
