Description / Overview

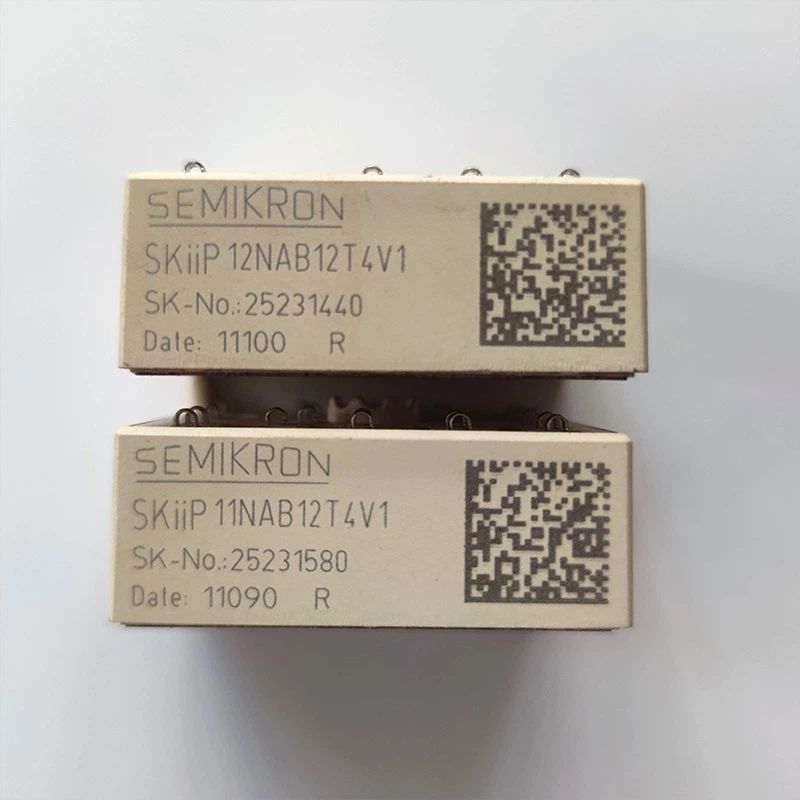

- SKIIP12NAB126V1 is a CIB (Converter + Inverter + Brake chopper) module in the MiniSKiiP family.
- It integrates a 3-phase rectifier (converter), a 3-phase inverter bridge, and a brake chopper in a single compact module.
- It uses fast trench IGBTs and robust freewheeling diodes (in “CAL” technology) for improved switching performance and reliability.
- The module has spring contacts for electrical connections (i.e. no soldered pins) to improve reliability and ease of assembly.
- It comes in a MiniSKiiP II 1 housing.
Key Specifications & Ratings
Here are some of the important electrical, mechanical, and thermal parameters:
| Parameter | Value / Range | Units / Notes |
| Voltage rating (IGBT / off‐state) | 1200 V | The module is rated for 1.2 kV blocking voltage. |
| Current rating | 15 A | The nominal (continuous) current of the module is specified as 15 A. |
| Dimensions (L × W × H) | 42 × 40 × 16 mm | Module envelope size. |
| Variant / Lid styles | Slim lid, standard lid, HPTP etc. | Different mechanical lid choices for thermal or mounting optimization. |
| Weight | ~ 0.03–0.04 kg | Net/gross weight as per product listing. |
| Applications | Inverters up to ~ 10 kVA, motor drives ~5.5 kW typical | As per the manufacturer’s recommended application envelope. |
| Topology | 3-phase rectifier + 3-phase inverter + brake chopper | Combined functional blocks in one module. |
